wsddapi.c File Reference

#include "wsddapi.h"

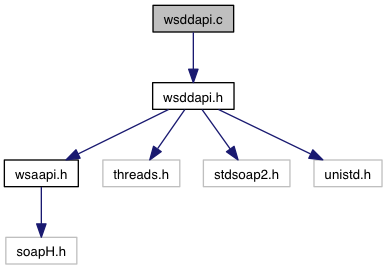

Include dependency graph for wsddapi.c:

Functions
static int	soap_wsdd_serve___wsdd__Hello (struct soap *soap)
static int	soap_wsdd_serve___wsdd__Bye (struct soap *soap)
static int	soap_wsdd_serve___wsdd__Probe (struct soap *soap)
static int	soap_wsdd_serve___wsdd__ProbeMatches (struct soap *soap)
static int	soap_wsdd_serve___wsdd__Resolve (struct soap *soap)
static int	soap_wsdd_serve___wsdd__ResolveMatches (struct soap *soap)
static void	soap_wsdd_set_AppSequence (struct soap *)
static void	soap_wsdd_reset_AppSequence (struct soap *)
static void	soap_wsdd_delay (struct soap *)
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_Hello (struct soap *soap, soap_wsdd_mode mode, const char *endpoint, const char *MessageID, const char *RelatesTo, const char *EndpointReference, const char *Types, const char *Scopes, const char *MatchBy, const char *XAddrs, unsigned int MetadataVersion)
	TS or DP Hello message to join a network. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_Bye (struct soap *soap, soap_wsdd_mode mode, const char *endpoint, const char *MessageID, const char *EndpointReference, const char *Types, const char *Scopes, const char *MatchBy, const char *XAddrs, unsigned int MetadataVersion)
	TS or DP Bye message to leave a network. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_Probe (struct soap *soap, soap_wsdd_mode mode, soap_wsdd_to to, const char *endpoint, const char *MessageID, const char *ReplyTo, const char *Types, const char *Scopes, const char *MatchBy)
	Client Probe message to a TS or DP. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_Resolve (struct soap *soap, soap_wsdd_mode mode, soap_wsdd_to to, const char *endpoint, const char *MessageID, const char *ReplyTo, const char *EndpointReference)
	Client Resolve message to a TS or DP. More...
SOAP_FMAC1 void SOAP_FMAC2	soap_wsdd_init_ProbeMatches (struct soap *soap, struct wsdd__ProbeMatchesType *matches)
	Initalize the probe matches container. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_add_ProbeMatch (struct soap *soap, struct wsdd__ProbeMatchesType *matches, const char *EndpointReference, const char *Types, const char *Scopes, const char *MatchBy, const char *XAddrs, unsigned int MetadataVersion)
	Add a match to the probe matches container. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_ProbeMatches (struct soap *soap, const char *endpoint, const char *MessageID, const char *RelatesTo, const char *To, struct wsdd__ProbeMatchesType *matches)
	TS or DP ProbeMatches message. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_ResolveMatches (struct soap *soap, const char *endpoint, const char *MessageID, const char *RelatesTo, const char *To, const char *EndpointReference, const char *Types, const char *Scopes, const char *MatchBy, const char *XAddrs, unsigned int MetadataVersion)
	TS or DP ResolveMatches message. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_listen (struct soap *soap, int timeout)
	Listen on a port for inbound WS-Discovery messages, also cleans up memory with soap_destroy and soap_end. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wsdd_serve_request (struct soap *soap)
SOAP_FMAC5 int SOAP_FMAC6	__wsdd__Hello (struct soap *soap, struct wsdd__HelloType *Hello)
	Internal WS-Discovery service operation. More...
SOAP_FMAC5 int SOAP_FMAC6	__wsdd__Bye (struct soap *soap, struct wsdd__ByeType *Bye)
	Internal WS-Discovery service operation. More...
static int	soap_wsdd_http (struct soap *soap, const char *endpoint, const char *host, int port, const char *path, const char *action, ULONG64 count)
SOAP_FMAC5 int SOAP_FMAC6	__wsdd__Probe (struct soap *soap, struct wsdd__ProbeType *Probe)
	Internal WS-Discovery service operation. More...
SOAP_FMAC5 int SOAP_FMAC6	__wsdd__ProbeMatches (struct soap *soap, struct wsdd__ProbeMatchesType *ProbeMatches)
	Internal WS-Discovery service operation. More...
SOAP_FMAC5 int SOAP_FMAC6	__wsdd__Resolve (struct soap *soap, struct wsdd__ResolveType *Resolve)
	Internal WS-Discovery service operation. More...
SOAP_FMAC5 int SOAP_FMAC6	__wsdd__ResolveMatches (struct soap *soap, struct wsdd__ResolveMatchesType *ResolveMatches)
	Internal WS-Discovery service operation. More...
SOAP_FMAC1 void SOAP_FMAC2	soap_wsdd_set_InstanceId (unsigned int InstanceId)
	Set the global AppSequence InstanceId that is used to populate messages. More...
SOAP_FMAC1 void SOAP_FMAC2	soap_wsdd_set_SequenceId (const char *SequenceId)
	Set the global AppSequence SequenceId that is used to populate messages. More...

Variables
const char *	to_ts_URL = "urn:docs-oasis-open-org:ws-dd:ns:discovery:2009:01"
static MUTEX_TYPE	soap_wsdd_state = MUTEX_INITIALIZER
static unsigned int	soap_wsdd_InstanceId = 0
static const char *	soap_wsdd_SequenceId = NULL
static unsigned int	soap_wsdd_MessageNumber = 1

Function Documentation

SOAP_FMAC5 int SOAP_FMAC6 __wsdd__Bye	(	struct soap *	soap,
		struct wsdd__ByeType *	Bye
	)

Internal WS-Discovery service operation.

SOAP_FMAC5 int SOAP_FMAC6 __wsdd__Hello	(	struct soap *	soap,
		struct wsdd__HelloType *	Hello
	)

Internal WS-Discovery service operation.

SOAP_FMAC5 int SOAP_FMAC6 __wsdd__Probe	(	struct soap *	soap,
		struct wsdd__ProbeType *	Probe
	)

Internal WS-Discovery service operation.

SOAP_FMAC5 int SOAP_FMAC6 __wsdd__ProbeMatches	(	struct soap *	soap,
		struct wsdd__ProbeMatchesType *	ProbeMatches
	)

Internal WS-Discovery service operation.

SOAP_FMAC5 int SOAP_FMAC6 __wsdd__Resolve	(	struct soap *	soap,
		struct wsdd__ResolveType *	Resolve
	)

Internal WS-Discovery service operation.

SOAP_FMAC5 int SOAP_FMAC6 __wsdd__ResolveMatches	(	struct soap *	soap,
		struct wsdd__ResolveMatchesType *	ResolveMatches
	)

Internal WS-Discovery service operation.

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_add_ProbeMatch	(	struct soap *	soap,
		struct wsdd__ProbeMatchesType *	matches,
		const char *	EndpointReference,
		const char *	Types,
		const char *	Scopes,
		const char *	MatchBy,
		const char *	XAddrs,
		unsigned int	MetadataVersion
	)

Add a match to the probe matches container.

Parameters

	soap	context
	matches	the container to update with a new match
[in]	EndpointReference	of this Target Server or Discovery Proxy
[in]	Types	an unordered string of QNames or NULL, a Discovery Proxy MUST include "wsdd:DiscoveryProxy"
[in]	Scopes	an unordered set of scopes or NULL
[in]	MatchBy	NULL (unused, reserved)
[in]	XAddrs	contains the transport address(es) that MAY be used to communicate with the Target Service or Discovery Proxy
[in]	MetadataVersion	incremented by a positive value (>= 1) whenever there is a change in the metadata of the Target Service

Returns

SOAP_OK or error code

To populate a Probe matches container, first initialize with soap_wsdd_init_ProbeMatches, then use this function to add each match. The container is deallocated with soap_end(soap) and can be initialized again (without leaks).

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_Bye	(	struct soap *	soap,
		soap_wsdd_mode	mode,
		const char *	endpoint,
		const char *	MessageID,
		const char *	EndpointReference,
		const char *	Types,
		const char *	Scopes,
		const char *	MatchBy,
		const char *	XAddrs,
		unsigned int	MetadataVersion
	)

TS or DP Bye message to leave a network.

Parameters

	soap	context
[in]	mode	SOAP_WSDD_MANAGED or SOAP_WSDD_ADHOC
[in]	endpoint	to send Bye message to (unicast or multicast)
[in]	MessageID	unique WS-Addressing message ID (soap_wsa_rand_uuid)
[in]	EndpointReference	of this Target Server or Discovery Proxy
[in]	Types	an unordered string of QNames or NULL, a Discovery Proxy MUST include "wsdd:DiscoveryProxy"
[in]	Scopes	an unordered set of scopes or NULL
[in]	MatchBy	NULL (unused, reserved)
[in]	XAddrs	contains the transport address(es) that MAY be used to communicate with the Target Service or Discovery Proxy
[in]	MetadataVersion	incremented by a positive value (>= 1) whenever there is a change in the metadata of the Target Service

Returns

SOAP_OK or error code

Bye is a one-way message sent by a Target Service to announce its unavailability as a best effort when it leaves the network.

static void soap_wsdd_delay ( struct soap *  soap )

static

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_Hello	(	struct soap *	soap,
		soap_wsdd_mode	mode,
		const char *	endpoint,
		const char *	MessageID,
		const char *	RelatesTo,
		const char *	EndpointReference,
		const char *	Types,
		const char *	Scopes,
		const char *	MatchBy,
		const char *	XAddrs,
		unsigned int	MetadataVersion
	)

TS or DP Hello message to join a network.

Parameters

	soap	context
[in]	mode	SOAP_WSDD_MANAGED or SOAP_WSDD_ADHOC
[in]	endpoint	to send Hello message to (unicast or multicast)
[in]	MessageID	unique WS-Addressing message ID (soap_wsa_rand_uuid)
[in]	RelatesTo	WS-Addressing message ID
[in]	EndpointReference	of this Target Server or Discovery Proxy
[in]	Types	an unordered string of QNames or NULL, a Discovery Proxy MUST include "wsdd:DiscoveryProxy"
[in]	Scopes	an unordered set of scopes or NULL
[in]	MatchBy	NULL (unused, reserved)
[in]	XAddrs	contains the transport address(es) that MAY be used to communicate with the Target Service or Discovery Proxy
[in]	MetadataVersion	incremented by a positive value (>= 1) whenever there is a change in the metadata of the Target Service

Returns

SOAP_OK or error code

Hello is a one-way message sent by a Target Service to announce its availability when it joins the network. It is also sent by a Discovery Proxy to reduce multicast traffic on an ad hoc network.

static int soap_wsdd_http ( struct soap *  soap, const char *  endpoint, const char *  host, int  port, const char *  path, const char *  action, ULONG64  count  )

static

SOAP_FMAC1 void SOAP_FMAC2 soap_wsdd_init_ProbeMatches	(	struct soap *	soap,
		struct wsdd__ProbeMatchesType *	matches
	)

Initalize the probe matches container.

Parameters

soap	context
matches	the container with matches to initialize

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_listen	(	struct soap *	soap,
		int	timeout
	)

Listen on a port for inbound WS-Discovery messages, also cleans up memory with soap_destroy and soap_end.

Parameters

	soap	context
[in]	timeout	seconds to listen (use negative value for micro seconds)

Returns

SOAP_OK or error code

First you need to open a port with soap_bind(soap). Then invoke this function to listen to WS-Discovery messages on that port. Inbound messages are accepted and the information is relayed to the event handlers, see Section WS-Discovery Event Handlers. Use soap->user to pass a pointer to a state object that the event hanlders can use. The timeout allows a Client to periodically poll the port for messages. A value of zero will loop the listener forever or until an error occurs.

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_Probe	(	struct soap *	soap,
		soap_wsdd_mode	mode,
		soap_wsdd_to	to,
		const char *	endpoint,
		const char *	MessageID,
		const char *	ReplyTo,
		const char *	Types,
		const char *	Scopes,
		const char *	MatchBy
	)

Client Probe message to a TS or DP.

Parameters

	soap	context
[in]	mode	SOAP_WSDD_MANAGED or SOAP_WSDD_ADHOC
[in]	to	SOAP_WSDD_TO_TS or SOAP_WSDD_TO_DP
[in]	endpoint	to send Probe to (unicast or multicast)
[in]	MessageID	WS-Addressing message ID of the message
[in]	ReplyTo	WS-Addressing ReplyTo message ID of the message
[in]	Types	an unordered string of QNames to probe
[in]	Scopes	an unordered set of scopes to probe
[in]	MatchBy	matching rule to apply for this probe

Returns

SOAP_OK or error code

A Client sends a probe to find Target Services by the Type of the Target Service, a Scope in which the Target Service resides, both, or simply all Target Services. The matches will be delivered to wsdd_event_ProbeMatches when soap_wsdd_listen receives a ProbeMatch response. The RelatesTo of the ProbeMatches is the MessageID of the Probe.

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_ProbeMatches	(	struct soap *	soap,
		const char *	endpoint,
		const char *	MessageID,
		const char *	RelatesTo,
		const char *	To,
		struct wsdd__ProbeMatchesType *	matches
	)

TS or DP ProbeMatches message.

Parameters

	soap	context
[in]	endpoint	to send Probe to (unicast or multicast)
[in]	MessageID	WS-Addressing message ID of the message
[in]	RelatesTo	WS-Addressing RelatesTo message ID of the message
[in]	To	WS-Addressing endpoint IP and port or NULL for anonymous
[in]	matches	contains the probe matches, use soap_wsdd_add_ProbeMatch to populate this container

Returns

SOAP_OK or error code

A Client sends a probe to find Target Services by the Type of the Target Service, a Scope in which the Target Service resides, both, or simply all Target Services. The Target Server(s) or Discovery Proxy responds by sending ProbeMatches to the Client.

static void soap_wsdd_reset_AppSequence ( struct soap *  soap )

static

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_Resolve	(	struct soap *	soap,
		soap_wsdd_mode	mode,
		soap_wsdd_to	to,
		const char *	endpoint,
		const char *	MessageID,
		const char *	ReplyTo,
		const char *	EndpointReference
	)

Client Resolve message to a TS or DP.

Parameters

	soap	context
[in]	mode	SOAP_WSDD_MANAGED or SOAP_WSDD_ADHOC
[in]	to	SOAP_WSDD_TO_TS or SOAP_WSDD_TO_DP
[in]	endpoint	to send Resolve to (unicast or multicast)
[in]	MessageID	WS-Addressing message ID of the message
[in]	ReplyTo	WS-Addressing ReplyTo message ID of the message
[in]	EndpointReference	of the Target Service or Discovery Proxy

Returns

SOAP_OK or error code

A Client sends a resolve to locate a Target Service, i.e., to retrieve its transport address(es). This server-side event handler returns the match(es). The matches will be delivered to wsdd_event_ResolveMatches when soap_wsdd_listen receives a ResolveMatch response. The RelatesTo of the ResolveMatches is the MessageID of the Resolve.

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_ResolveMatches	(	struct soap *	soap,
		const char *	endpoint,
		const char *	MessageID,
		const char *	RelatesTo,
		const char *	To,
		const char *	EndpointReference,
		const char *	Types,
		const char *	Scopes,
		const char *	MatchBy,
		const char *	XAddrs,
		unsigned int	MetadataVersion
	)

TS or DP ResolveMatches message.

Parameters

	soap	context
[in]	endpoint	to send Probe to (unicast or multicast)
[in]	MessageID	WS-Addressing message ID of the message
[in]	RelatesTo	WS-Addressing RelatesTo message ID of the message
[in]	To	WS-Addressing endpoint IP and port or NULL for anonymous
[in]	EndpointReference	of the Target Service
[in]	Types	an unordered string of QNames or NULL, a Discovery Proxy MUST include "wsdd:DiscoveryProxy"
[in]	Scopes	an unordered set of scopes or NULL
[in]	MatchBy	NULL (unused, reserved)
[in]	XAddrs	contains the transport address(es) that MAY be used to communicate with the Target Service or Discovery Proxy
[in]	MetadataVersion	incremented by a positive value (>= 1) whenever there is a change in the metadata of the Target Service

Returns

SOAP_OK or error code

A Client sends a resolve to locate a Target Service, i.e., to retrieve its transport address(es). The Target Server(s) or Discovery Proxy responds by sending ResolveMatches to the Client.

static int soap_wsdd_serve___wsdd__Bye ( struct soap *  soap )

static

static int soap_wsdd_serve___wsdd__Hello ( struct soap *  soap )

static

static int soap_wsdd_serve___wsdd__Probe ( struct soap *  soap )

static

static int soap_wsdd_serve___wsdd__ProbeMatches ( struct soap *  soap )

static

static int soap_wsdd_serve___wsdd__Resolve ( struct soap *  soap )

static

static int soap_wsdd_serve___wsdd__ResolveMatches ( struct soap *  soap )

static

SOAP_FMAC1 int SOAP_FMAC2 soap_wsdd_serve_request

(

struct soap *

soap

)

static void soap_wsdd_set_AppSequence ( struct soap *  soap )

static

SOAP_FMAC1 void SOAP_FMAC2 soap_wsdd_set_InstanceId

(

unsigned int

InstanceId

)

Set the global AppSequence InstanceId that is used to populate messages.

Parameters

[in]

InstanceId

SOAP_FMAC1 void SOAP_FMAC2 soap_wsdd_set_SequenceId

(

const char *

SequenceId

)

Set the global AppSequence SequenceId that is used to populate messages.

Parameters

[in]

SequenceId

Variable Documentation

unsigned int soap_wsdd_InstanceId = 0

static

unsigned int soap_wsdd_MessageNumber = 1

static

const char* soap_wsdd_SequenceId = NULL

static

MUTEX_TYPE soap_wsdd_state = MUTEX_INITIALIZER

static

const char* to_ts_URL = "urn:docs-oasis-open-org:ws-dd:ns:discovery:2009:01"
