reflex::Pattern::DFA::State Struct Reference

#include <pattern.h>

Inheritance diagram for reflex::Pattern::DFA::State:

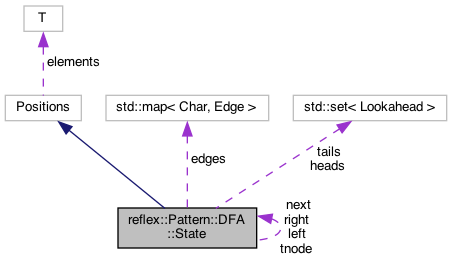

Collaboration diagram for reflex::Pattern::DFA::State:

Public Types
typedef std::pair< Char, State * >	Edge
	hi of char range [lo,hi] and state to transition to More...
typedef std::map< Char, Edge >	Edges
	maps lo to hi and state to transition to on char in range [lo,hi] More...

Public Member Functions
	State ()

Public Attributes
State *	next
	points to next state in the list of states allocated depth-first by subset construction More...
State *	left
	left pointer for O(log N) node insertion in the hash table overflow tree More...
State *	right
	right pointer for O(log N) node insertion in the hash table overflow tree More...
State *	tnode
	the corresponding tree DFA node, when applicable More...
Edges	edges
	state transitions More...
Lookaheads	heads
	lookahead head set More...
Lookaheads	tails
	lookahead tail set More...
Index	first
	index of this state in the opcode table in the first assembly pass, also used in breadth-first search to cut DFA for predict match More...
Index	index
	index of this state in the opcode table, also used in HFA construction More...
Accept	accept
	nonzero if final state, the index of an accepted/captured subpattern More...
bool	redo
	true if this is a final state of a negative pattern More...

Member Typedef Documentation

typedef std::pair<Char,State*> reflex::Pattern::DFA::State::Edge

hi of char range [lo,hi] and state to transition to

typedef std::map<Char,Edge> reflex::Pattern::DFA::State::Edges

maps lo to hi and state to transition to on char in range [lo,hi]

Constructor & Destructor Documentation

reflex::Pattern::DFA::State::State ( )

inline

Member Data Documentation

Accept reflex::Pattern::DFA::State::accept

nonzero if final state, the index of an accepted/captured subpattern

Edges reflex::Pattern::DFA::State::edges

state transitions

Index reflex::Pattern::DFA::State::first

index of this state in the opcode table in the first assembly pass, also used in breadth-first search to cut DFA for predict match

Lookaheads reflex::Pattern::DFA::State::heads

lookahead head set

Index reflex::Pattern::DFA::State::index

index of this state in the opcode table, also used in HFA construction

State* reflex::Pattern::DFA::State::left

left pointer for O(log N) node insertion in the hash table overflow tree

State* reflex::Pattern::DFA::State::next

points to next state in the list of states allocated depth-first by subset construction

bool reflex::Pattern::DFA::State::redo

true if this is a final state of a negative pattern

State* reflex::Pattern::DFA::State::right

right pointer for O(log N) node insertion in the hash table overflow tree

Lookaheads reflex::Pattern::DFA::State::tails

lookahead tail set

State* reflex::Pattern::DFA::State::tnode

the corresponding tree DFA node, when applicable

---

The documentation for this struct was generated from the following file:

• pattern.h
